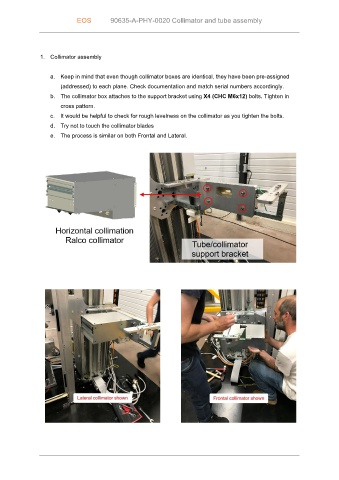

EOS 90635-A-PHY-0020 Collimator and tube assembly
1. Collimator assembly
a. Keep in mind that even though collimator boxes are identical, they have been pre-assigned
(addressed) to each plane. Check documentation and match serial numbers accordingly.
b. The collimator box attaches to the support bracket using X4 (CHC M6x12) bolts. Tighten in
cross pattern.
c. It would be helpful to check for rough levelness on the collimator as you tighten the bolts.
d. Try not to touch the collimator blades
e. The process is similar on both Frontal and Lateral.
