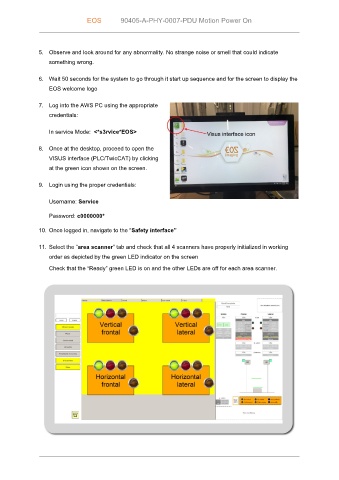

EOS 90405-A-PHY-0007-PDU Motion Power On

5. Observe and look around for any abnormality. No strange noise or smell that could indicate
something wrong.

6. Wait 50 seconds for the system to go through it start up sequence and for the screen to display the

EOS welcome logo

7. Log into the AWS PC using the appropriate
credentials:

In service Mode: <*s3rvice*EOS>

8. Once at the desktop, proceed to open the
VISUS interface (PLC/TwicCAT) by clicking
at the green icon shown on the screen.

9. Login using the proper credentials:

Username: Service

Password: c0000000*

10. Once logged in, navigate to the “Safety interface”

11. Select the “area scanner” tab and check that all 4 scanners have properly initialized in working

order as depicted by the green LED indicator on the screen
Check that the “Ready” green LED is on and the other LEDs are off for each area scanner.
