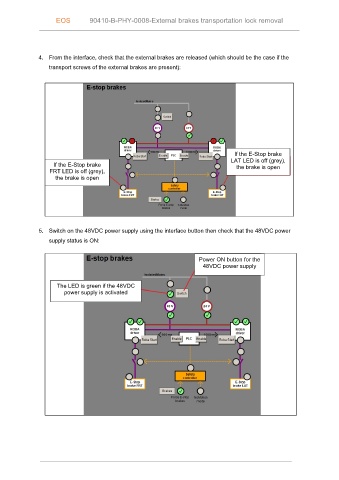

EOS 90410-B-PHY-0008-External brakes transportation lock removal

4. From the interface, check that the external brakes are released (which should be the case if the
transport screws of the external brakes are present):

If the E-Stop brake
If the E-Stop brake LAT LED is off (grey),
FRT LED is off (grey), the brake is open
the brake is open

5. Switch on the 48VDC power supply using the interface button then check that the 48VDC power
supply status is ON:

Power ON button for the
48VDC power supply

The LED is green if the 48VDC
power supply is activated
