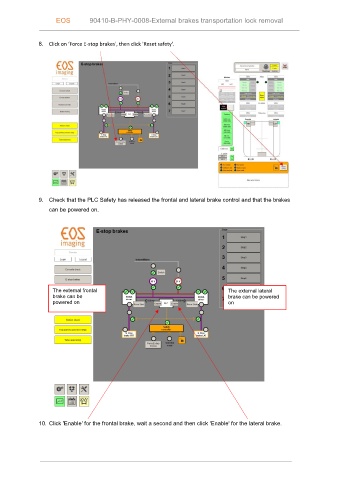

EOS 90410-B-PHY-0008-External brakes transportation lock removal
8. Click on ‘Force E-stop brakes', then click 'Reset safety'.
9. Check that the PLC Safety has released the frontal and lateral brake control and that the brakes
can be powered on.
The external frontal The external lateral
brake can be brake can be powered
powered on on
10. Click 'Enable' for the frontal brake, wait a second and then click 'Enable' for the lateral brake.
