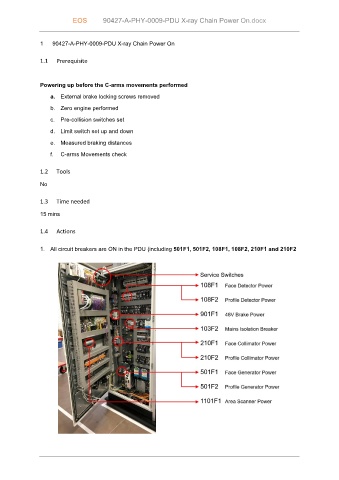

EOS          90427-A-PHY-0009-PDU X-ray Chain Power On.docx



               1   90427-A-PHY-0009-PDU X-ray Chain Power On

               1.1   Prerequisite



               Powering up before the C-arms movements performed
                   a.  External brake locking screws removed

                   b.  Zero engine performed
                   c.  Pre-collision switches set

                   d.  Limit switch set up and down
                   e.  Measured braking distances

                   f.  C-arms Movements check


               1.2   Tools

               No

               1.3   Time needed

               15 mins


               1.4   Actions


               1.  All circuit breakers are ON in the PDU (including 501F1, 501F2, 108F1, 108F2, 210F1 and 210F2
