EOS 90427-A-PHY-0009-PDU X-ray Chain Power On.docx

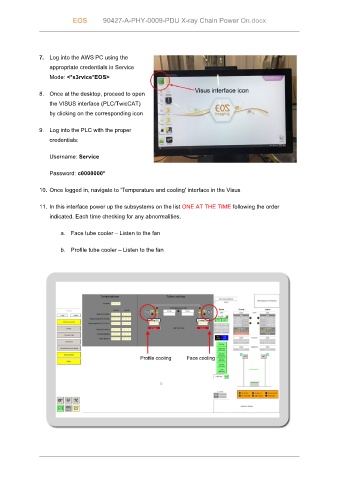

7. Log into the AWS PC using the
appropriate credentials in Service
Mode: <*s3rvice*EOS>

8. Once at the desktop, proceed to open
the VISUS interface (PLC/TwicCAT)
by clicking on the corresponding icon

9. Log into the PLC with the proper
credentials:

Username: Service

Password: c0000000*

10. Once logged in, navigate to 'Temperature and cooling' interface in the Visus

11. In this interface power up the subsystems on the list ONE AT THE TIME following the order

indicated. Each time checking for any abnormalities.

a. Face tube cooler – Listen to the fan

b. Profile tube cooler – Listen to the fan
