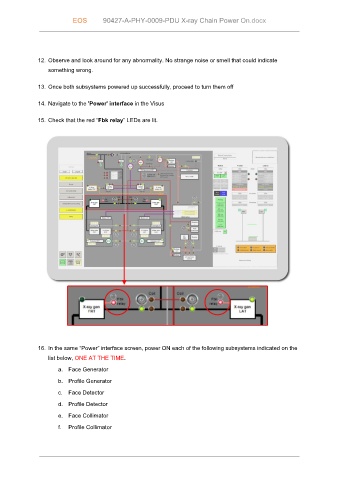

EOS 90427-A-PHY-0009-PDU X-ray Chain Power On.docx
12. Observe and look around for any abnormality. No strange noise or smell that could indicate
something wrong.
13. Once both subsystems powered up successfully, proceed to turn them off
14. Navigate to the 'Power' interface in the Visus
15. Check that the red “Fbk relay” LEDs are lit.
16. In the same “Power” interface screen, power ON each of the following subsystems indicated on the
list below, ONE AT THE TIME.
a. Face Generator
b. Profile Generator
c. Face Detector
d. Profile Detector
e. Face Collimator
f. Profile Collimator
