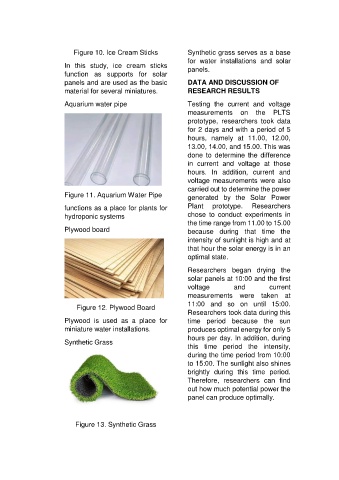

Page 7 - Jurnal Penelitian MTsN 6 Jakarta
P. 7
Figure 10. Ice Cream Sticks Synthetic grass serves as a base
for water installations and solar
In this study, ice cream sticks panels.
function as supports for solar
panels and are used as the basic DATA AND DISCUSSION OF
material for several miniatures. RESEARCH RESULTS
Aquarium water pipe Testing the current and voltage
measurements on the PLTS
prototype, researchers took data
for 2 days and with a period of 5
hours, namely at 11.00, 12.00,
13.00, 14.00, and 15.00. This was
done to determine the difference
in current and voltage at those
hours. In addition, current and
voltage measurements were also
carried out to determine the power
Figure 11. Aquarium Water Pipe generated by the Solar Power
functions as a place for plants for Plant prototype. Researchers
hydroponic systems chose to conduct experiments in
the time range from 11.00 to 15.00
Plywood board because during that time the
intensity of sunlight is high and at
that hour the solar energy is in an
optimal state.
Researchers began drying the
solar panels at 10:00 and the first
voltage and current
measurements were taken at
11:00 and so on until 15:00.
Figure 12. Plywood Board
Researchers took data during this
Plywood is used as a place for time period because the sun
miniature water installations. produces optimal energy for only 5
hours per day. In addition, during
Synthetic Grass
this time period the intensity,
during the time period from 10:00
to 15:00. The sunlight also shines
brightly during this time period.
Therefore, researchers can find
out how much potential power the
panel can produce optimally.
Figure 13. Synthetic Grass
