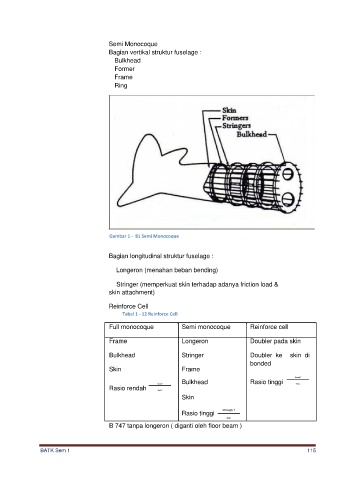

Semi Monocoque
Bagian vertikal struktur fuselage :
Bulkhead
Former
Frame
Ring

Gambar 1 - 81 Semi Monocoque

Bagian longitudinal struktur fuselage :

Longeron (menahan beban bending)

Stringer (memperkuat skin terhadap adanya friction load &
skin attachment)

Reinforce Cell
Tabel 1 - 12 Reinforce Cell

Full monocoque Semi monocoque Reinforce cell

Frame Longeron Doubler pada skin

Bulkhead Stringer Doubler ke skin di
bonded
Skin Frame
Strength ↑
Rasio tinggi
Bulkhead
Strength ↑ Weight ↓
Rasio rendah Weight ↑
Skin
Strength ↑
Rasio tinggi
Weight ↓
B 747 tanpa longeron ( diganti oleh floor beam )
