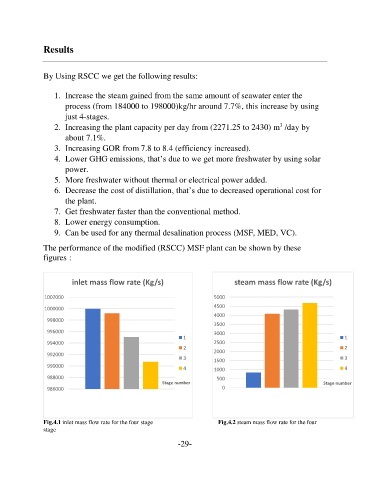

Results

By Using RSCC we get the following results:

1. Increase the steam gained from the same amount of seawater enter the
process (from 184000 to 198000)kg/hr around 7.7%, this increase by using
just 4-stages.
3
2. Increasing the plant capacity per day from (2271.25 to 2430) m /day by
about 7.1%.

3. Increasing GOR from 7.8 to 8.4 (efficiency increased).
4. Lower GHG emissions, that’s due to we get more freshwater by using solar
power.
5. More freshwater without thermal or electrical power added.
6. Decrease the cost of distillation, that’s due to decreased operational cost for
the plant.

7. Get freshwater faster than the conventional method.
8. Lower energy consumption.
9. Can be used for any thermal desalination process (MSF, MED, VC).

The performance of the modified (RSCC) MSF plant can be shown by these
figures :

inlet mass flow rate (Kg/s) steam mass flow rate (Kg/s)

1002000 5000
4500
1000000
4000
998000
3500
996000 3000
1 1
994000 2500
2 2
992000 2000
3 3
1500
990000 4 1000 4
988000 500
Stage number Stage number
986000 0

Fig.4.1 inlet mass flow rate for the four stage Fig.4.2 steam mass flow rate for the four
stage
-29-
