original RSCC DEV.RSCC
184000 198000 218162

Total steam flow rate kg/hr

230000

220000

210000
orginal
200000
RSCC
190000
DEV.RSCC
180000

170000

160000

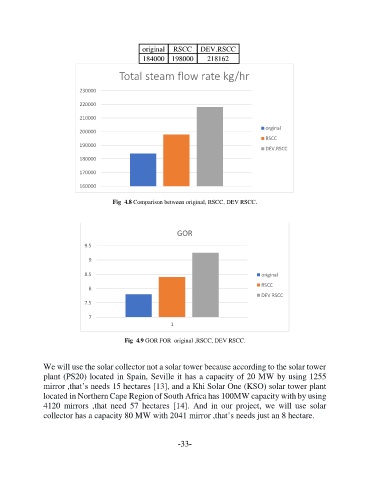

Fig 4.8 Comparison between original, RSCC, DEV RSCC.

GOR

9.5

9

8.5 original
RSCC
8
DEV RSCC
7.5

7
1

Fig 4.9 GOR FOR original ,RSCC, DEV RSCC.

We will use the solar collector not a solar tower because according to the solar tower
plant (PS20) located in Spain, Seville it has a capacity of 20 MW by using 1255
mirror ,that’s needs 15 hectares [13], and a Khi Solar One (KSO) solar tower plant
located in Northern Cape Region of South Africa has 100MW capacity with by using
4120 mirrors ,that need 57 hectares [14]. And in our project, we will use solar
collector has a capacity 80 MW with 2041 mirror ,that’s needs just an 8 hectare.

-33-
