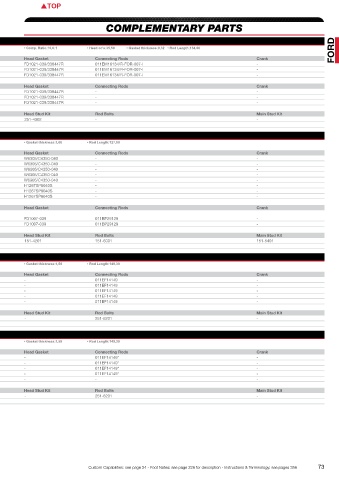

Ford PISTONS COMPLEMENTARY PARTS

1.6L Ecoboost as in Fiesta ST180/Focus MKIII
OEM Engine details 1,6 Ltr 16V Ecoboost Engine code:JTJA/HXJA/HXJB • Displacement:1596 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:35,50 • Gasket thickness:0,32 • Rod Length:134,00 FORD
Bore:79,00 • Stroke:81,40 • Block Ht:204,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE149M79AP 79,00 Std. 28,58 -3,7 0,72- 10,0:1 21 7900XX 285 1,F,Q FD1021-039/338447R 011EM16134/R-FOR-007-I -
KE149M795AP 79,50 0,50 28,58 -3,7 0,72- 10,0:1 21 7950XX 289 1,F,Q FD1021-039/338447R 011EM16134/R-FOR-007-I -
KE149M80AP 80,00 1,00 28,58 -3,7 0,72- 10,0:1 21 8000XX 293 1,F,M,Q FD1021-039/338447R 011EM16134/R-FOR-007-I -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
TBA 79,00 Std. - - - 10,0:1 - JG1004-3110 - F,T FD1021-039/338447R - -
TBA 79,50 0,50 - - - 10,0:1 - JG1004-3130 - F,T FD1021-039/338447R - -
TBA 80,00 1,00 - - - 10,0:1 - JG1004-3150 - F,T FD1021-039/338447R - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7267H(HX/0,025/0,25/0,50) - - 251-4302 - -
KING - - -
2.0L OHC/Pinto
OEM Engine details 2,0 Ltr 8V Engine code:OHC(Pinto SOHC) • Displacement:1992 cc • Valves:8 • Comp. Ratio:9,2:1 • Head cc’s:49,00 • Gasket thickness:1,00 • Rod Length:127,00
Bore:90,80 • Stroke:76,90 • Block Ht:207,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE221M9094 90,94 0,14 41,60 0 0,45- 9,2:1 24 9100XX 428 1,M,R W6305/C4350-040 - -
KE221M915 91,50 0,70 41,60 0 0,45- 9,2:1 24 9150XX 430 1,M,R W6305/C4350-040 - -
KE221M92 92,00 1,20 41,60 0 0,45- 9,2:1 24 9200XX 435 1,R W6305/C4350-040 - -
KE221M9225 92,25 1,45 41,60 0 0,45- 9,2:1 24 9225XX 438 1,M,R W6305/C4350-040 - -
KE221M9275 92,75 1,95 41,60 0 0,45- 9,2:1 24 9275XX 442 1,M,R W6305/C4350-040 - -
KE221M93 93,00 2,20 41,60 0 0,45- 9,2:1 24 9300XX 445 1,M,R H1267SP8040S - -
KE221M935 93,50 2,70 41,60 0 0,45- 9,2:1 24 9350XX 450 1,M,R H1267SP8040S - -
KE221M94 94,00 3,20 41,60 0 0,45- 9,2:1 24 9400XX 455 1,M,R H1267SP8040S - -

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
Use with 128,52mm Rod
330801C 91,00 0,20 40,51 10,9 0 11,5:1 24 JG1001-3583 414 M FD1007-039 011BP29129 -
315262C 92,00 1,20 40,51 10,9 0 11,5:1 24 JG1001-3622 412 M FD1007-039 011BP29129 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B2166H(HX/0,25/0,50) 5M2167H(HX/0,25/0,50) 2T2167 151-4201 151-6001 151-5401
KING - - -

Sierra DOHC/Scorpio
OEM Engine details 2,0 Ltr 8V Engine code:N9C/N9E/N9A • Displacement:1998 cc • Valves:8 • Comp. Ratio:10,3:1 • Head cc’s:42,00 • Gasket thickness:1,58 • Rod Length:149,30
Bore:86,00 • Stroke:86,00 • Block Ht:225,00 • Pin Size 20,63 - 13/16”
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE246M86 86,00 Std. 32,38 -13 0,32- 8,5:1 20 8600XX 324 1,L,M - 011EF14149 -
KE246M865 86,50 0,50 32,38 -13 0,32- 8,5:1 20 8650XX 319 1,L,M - 011EF14149 -
KE246M87 87,00 1,00 32,38 -13 0,32- 8,5:1 20 8700XX 329 1,L,M - 011EF14149 -
KE235M86 86,00 Std. 32,38 -0,25 0,32- 10,3:1 20 8600XX 337 1,L,M - 011EF14149 -
KE235M865 86,50 0,50 32,38 -0,25 0,32- 10,3:1 20 8650XX 332 1,L - 011EF14149 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 251-6201 -
KING - - -

RS2000 DOHC
OEM Engine details 2,0 Ltr 16V Engine code:N7A • Displacement:1998 cc • Valves:16 • Comp. Ratio:10,3:1 • Head cc’s:38,50 • Gasket thickness:1,58 • Rod Length:149,30
Bore:86,00 • Stroke:86,00 • Block Ht:225,00 • Pin Size 20,63 - 13/16”
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
309765C 86,00 Std. 32,36 -2,2 0,34- 10,6:1 20 JG1001-3386 316 L,M,S - 011EF14149* -
358778C 86,25 0,25 32,36 -1,2 0,34- 10,6:1 20 8625XX 315 L,M,S - 011EF14149* -
309764C 86,50 0,50 32,36 -2,7 0,34- 10,6:1 20 JG1001-3405 320 L,M,S - 011EF14149* -
309766C 87,00 1,00 32,36 -3,25 0,34- 10,6:1 20 JG1001-3425 324 L,M,S - 011EF14149* -
320140C 86,50 0,50 31,85 9,7 0,85- 12,0:1 20,63 JG1001-3405 323 M - - -
*use with N9C bearings
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 251-6201 -
KING - - -

72 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 73
