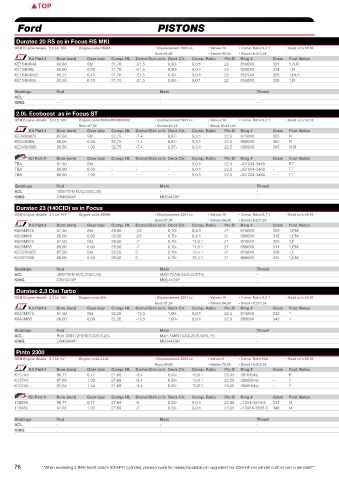

Page 75 - EA20_LR

TOP TOP

Ford PISTONS COMPLEMENTARY PARTS

Duratec 20 RS as in Focus RS MKI
OEM Engine details 2,0 Ltr 16V Engine code:HMDA • Displacement:1988 cc • Valves:16 • Comp. Ratio:9,0:1 • Head cc’s:35,50 • Gasket thickness:0,60 • Rod Length:137,00 FORD
Bore:84,80 • Stroke:88,00 • Block Ht:213,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE154M848 84,80 Std. 31,70 -21,5 0,30- 9,0:1 22 8500XX 321 1,A,R - 311BO17137 -
KE154M85 85,00 0,20 31,70 -21,5 0,30- 9,0:1 22 8500XX 324 1,R - 311BO17137 -
KE154M8525 85,25 0,45 31,70 -21,5 0,30- 9,0:1 22 8525XX 326 1,M,R - 311BO17137 -
KE154M855 85,50 0,70 31,70 -21,5 0,30- 9,0:1 22 8550XX 328 1,R - 311BO17137 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
2.0L Ecoboost as in Focus ST
OEM Engine details 2,0 Ltr 16V Engine code:R9DA/R9DB/R9DC • Displacement:1999 cc • Valves:16 • Comp. Ratio:9,3:1 • Head cc’s:42,70 • Gasket thickness:0,90 • Rod Length:156,55
Bore:87,50 • Stroke:83,10 • Block Ht:231,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE345M875 87,50 Std. 32,75 -7,4 0,87- 9,3:1 22,5 8750XX 355 R C15317-034 F_BEB20_0HS_6135B6H-04 ARROWC145
KE345M88 88,00 0,50 32,75 -7,4 0,87- 9,3:1 22,5 8800XX 360 R C15317-034 F_BEB20_0HS_6135B6H-04 ARROWC145
KE345M885 88,50 1,00 32,75 -7,4 0,87- 9,3:1 22,5 8850XX 365 M,R C15317-034 F_BEB20_0HS_6135B6H-04 ARROWC145
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
TBA 87,50 Std. - - - 9,0:1 22,5 JG1004-3445 - F,T C15317-034 F_BEB20_0HS_6135B6H-04 ARROWC145
TBA 88,00 0,50 - - - 9,0:1 22,5 JG1004-3465 - F,T C15317-034 F_BEB20_0HS_6135B6H-04 ARROWC145
TBA 88,50 1,00 - - - 9,0:1 22,5 JG1004-3484 - F,T C15317-034 F_BEB20_0HS_6135B6H-04 ARROWC145
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8172H(HX/0,025/0,25) - - - - -
KING CR4604XP MB5442XP -
Duratec 23 (140CID) as in Focus
OEM Engine details 2,3 Ltr 16V Engine code:SEWA • Displacement:2261 cc • Valves:16 • Comp. Ratio:9,7:1 • Head cc’s:42,00 • Gasket thickness:0,50 • Rod Length:154,80
Bore:87,50 • Stroke:94,00 • Block Ht:231,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K628M875 87,50 Std. 28,50 -23 0,70- 8,8:1 21 8750XX 309 1,F,M C5843-018 011BM16155 -
K628M88 88,00 0,50 28,50 -23 0,70- 8,8:1 21 8800XX 315 1,F,M C5843-018 011BM16155 -
K629M875 87,50 Std. 28,50 -7 0,70- 11,0:1 21 8750XX 306 1,F C5843-018 011BM16155 -
K629M88 88,00 0,50 28,50 -7 0,70- 11,0:1 21 8800XX 311 1,F,M C5843-018 011BM16155 -
KE257M875 87,50 Std. 28,50 0 0,70- 12,4:1 21 8750XX 328 1,F C5843-018 011BM16155 -
KE257M88 88,00 0,50 28,50 0 0,70- 12,4:1 21 8800XX 335 1,F,M C5843-018 011BM16155 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8170H(HX/0,025/0,25) 5M8174A(0,25/0,50/075) - 151-4204 - 151-5405
KING CR4507XP MB5442XP -
Duratec 2,3 Disi Turbo
OEM Engine details 2,3 Ltr 16V Engine code:N/A • Displacement:2261 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:42,00 • Gasket thickness:0,50 • Rod Length:150,75
Bore:87,50 • Stroke:94,00 • Block Ht:231,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K640M875 87,50 Std. 32,26 -13,3 1,00- 9,8:1 22,5 8750XX 342 1 C4481-030 028CF19151 -
K640M88 88,00 0,50 32,26 -13,3 1,00- 9,9:1 22,5 8800XX 346 1 C4481-030 028CF19151 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL Rod 4B8172H(HX/0,025/0,25) Main 5M8174A(0,25/0,50/0,75) - 218-4702 - 218-5402
KING CR4504XP MB5442XP -
Pinto 2300
OEM Engine details 2,3 Ltr 8V Engine code:LL23 • Displacement:2302 cc • Valves:8 • Comp. Ratio:N/A • Head cc’s:52,00 • Gasket thickness:N/A • Rod Length:144,78
Bore:96,00 • Stroke:79,50 • Block Ht:212,55
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K157A3 96,77 0,77 27,69 -3,4 0,33- 10,0:1 23,55 3810A(4x) - F C5369-040 - -
K157A4 97,03 1,03 27,69 -3,4 0,33- 10,0:1 23,55 3820B(4x) - F C5369-040 - -
K157A5 97,54 1,54 27,69 -3,4 0,33- 10,0:1 23,55 3840H(4x) - F - - -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
118558 96,77 0,77 27,69 -2 0,33- 9,0:1 23,55 J1004-3810-5 341 M C5369-040 - -
118560 97,03 1,03 27,69 -2 0,33- 9,0:1 23,55 J100F4-3820-5 349 M C5369-040 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 151-4702 251-6402 151-5402
KING - - -

76 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 77
