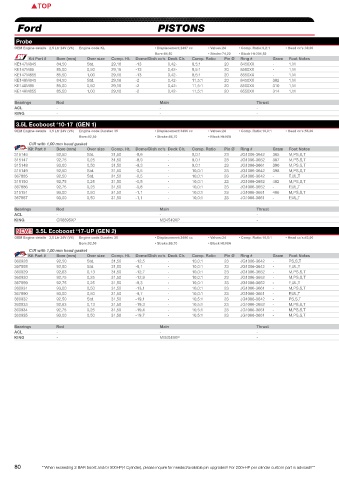

Ford PISTONS COMPLEMENTARY PARTS

Probe
OEM Engine details 2,5 Ltr 24V (V6) Engine code:KL • Displacement:2497 cc • Valves:24 • Comp. Ratio:9,2:1 • Head cc’s:39,00 • Gasket thickness:0,35 • Rod Length:137,82 FORD
Bore:84,50 • Stroke:74,20 • Block Ht:204,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE147M845 84,50 Std. 29,16 -13 0,42- 8,5:1 20 8450XX - 1,M - - -
KE147M85 85,00 0,50 29,16 -13 0,42- 8,5:1 20 8500XX - 1,M - - -
KE147M855 85,50 1,00 29,16 -13 0,42- 8,5:1 20 8550XX - 1,M - - -
KE148M845 84,50 Std. 29,16 -2 0,42- 11,5:1 20 8450XX 302 1,M - - -
KE148M85 85,00 0,50 29,16 -2 0,42- 11,5:1 20 8500XX 310 1,M - - -
KE148M855 85,50 1,00 29,16 -2 0,42- 11,5:1 20 8550XX 314 1,M - -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 218-4704 - -
KING - - -
3.5L Ecoboost ‘10-17 (GEN 1)
OEM Engine details 3,5 Ltr 24V (V6) Engine code:Duratec 35 • Displacement:3496 cc • Valves:24 • Comp. Ratio:10,0:1 • Head cc’s:56,00 • Gasket thickness:N/A • Rod Length:152,70
Bore:92,50 • Stroke:86,70 • Block Ht:N/A
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
315146 92,50 Std. 31,50 -8,6 - 9,0:1 23 JG1006-3642 385 M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
315147 92,75 0,25 31,50 -8,9 - 9,0:1 23 JG1006-3652 387 M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
315148 93,00 0,50 31,50 -9,3 - 9,0:1 23 JG1006-3661 390 M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
315149 92,50 Std. 31,50 -0,5 - 10,0:1 23 JG1006-3642 398 M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
367885 92,50 Std. 31,50 -0,5 - 10,0:1 23 JG1006-3642 - F,UL,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
315150 92,75 0,25 31,50 -0,8 - 10,0:1 23 JG1006-3652 402 M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
367886 92,75 0,25 31,50 -0,8 - 10,0:1 23 JG1006-3652 - F,UL,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
315151 93,00 0,50 31,50 -1,1 - 10,0:1 23 JG1006-3661 406 M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
367887 93,00 0,50 31,50 -1,1 - 10,0:1 23 JG1006-3661 - F,UL,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 153-4303 - -
KING CR6895XP MB4549XP -
NEW!! 3.5L Ecoboost ‘17-UP (GEN 2)
OEM Engine details 3,5 Ltr 24V (V6) Engine code:Duratec 35 • Displacement:3496 cc • Valves:24 • Comp. Ratio:10,5:1 • Head cc’s:43,00 • Gasket thickness:N/A • Rod Length:152,70
Bore:92,50 • Stroke:86,70 • Block Ht:N/A
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
360928 92,50 Std. 31,50 -12,5 - 10,0:1 23 JG1006-3642 - PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
367888 92,50 Std. 31,50 -9,1 - 10,0:1 23 JG1006-3642 - F,UL,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
360929 92,63 0,13 31,50 -12,7 - 10,0:1 23 JG1006-3652 - M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
360930 92,75 0,25 31,50 -12,9 - 10,0:1 23 JG1006-3652 - M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
367889 92,75 0,25 31,50 -9,3 - 10,0:1 23 JG1006-3652 - F,UL,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
360931 93,00 0,50 31,50 -13,1 - 10,0:1 23 JG1006-3661 - M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
367890 93,00 0,50 31,50 -9,7 - 10,0:1 23 JG1006-3661 - F,UL,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
360932 92,50 Std. 31,50 -19,1 - 10,5:1 23 JG1006-3642 - PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
360933 92,63 0,13 31,50 -19,3 - 10,5:1 23 JG1006-3652 - M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
360934 92,75 0,25 31,50 -19,4 - 10,5:1 23 JG1006-3661 - M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -
360935 93,00 0,50 31,50 -19,7 - 10,5:1 23 JG1006-3661 - M,PS,S,T - F_BEB35_0YS_6012B6S-06 / FD6012-905 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 153-4303 - -
KING - MB4549XP -

80 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 81
