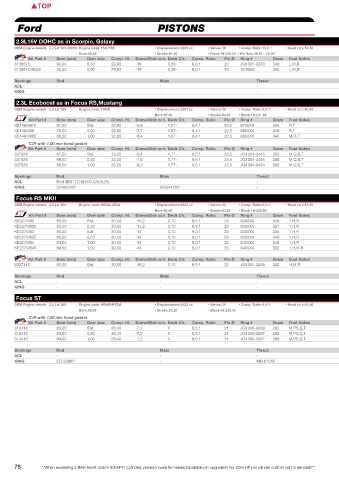

Ford PISTONS COMPLEMENTARY PARTS

2.3L16V DOHC as in Scorpio, Galaxy
OEM Engine details 2,3 Ltr 16V DOHC Engine code:Y5A/Y5B • Displacement:2295 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:53,50 • Gasket thickness:1,40 • Rod Length:149,30 FORD
Bore:89,60 • Stroke:91,00 • Block Ht:225,00 • Pin Size 20,63 - 13/16”
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
313687C 90,00 0,40 29,82 -18 0,38- 8,0:1 20 JG1001-3543 340 L,M,R - 011EF14149 -
313687C-9050 90,50 0,90 29,82 -18 0,38- 8,0:1 20 XC9050 345 L,M,R - 011EF14149 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 251-6201 -
KING - - -
2.3L Ecoboost as in Focus RS,Mustang
OEM Engine details 2,3 Ltr 16V Engine code:YVDA • Displacement:2261 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:43,40 • Gasket thickness:0,93 • Rod Length:149,23
Bore:87,50 • Stroke:94,00 • Block Ht:231,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE146M875 87,50 Std. 32,80 -6,8 1,97- 9,4:1 22,5 8750XX 335 R,T C15294-036/338482R FD5866-886 ARROWC146/ARROWC147
KE146M88 88,00 0,50 32,80 -7,7 1,97- 9,4:1 22,5 8800XX 340 R,T C15294-036/338482R FD5866-886 ARROWC146/ARROWC147
KE146M885 88,50 1,00 32,80 -8,4 1,97- 9,4:1 22,5 8850XX 345 M,R,T C15294-036/338482R FD5866-886 ARROWC146/ARROWC147
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
337924 87,50 Std. 33,00 -6,4 1,77- 9,5:1 22,5 JG1004-3445 355 M,Q,S,T C15294-036/338482R FD5866-886 ARROWC146/ARROWC147
337925 88,00 0,50 33,00 -7,6 1,77- 9,5:1 22,5 JG1004-3465 358 M,Q,S,T C15294-036/338482R FD5866-886 ARROWC146/ARROWC147
337926 88,50 1,00 33,00 -8,2 1,77- 9,5:1 22,5 JG1004-3484 363 M,Q,S,T C15294-036/338482R FD5866-886 ARROWC146/ARROWC147
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL Rod 4B8172H(HX/0,025/0,25) - - 151-4301 - 151-5407
KING CR4604XP MB5442XP -

Focus RS MKII
OEM Engine details 2,5 Ltr 20V Engine code:HUBA/JZDA • Displacement:2522 cc • Valves:20 • Comp. Ratio:9,0:1 • Head cc’s:51,00 • Gasket thickness:1,35 • Rod Length:143,00
Bore:83,00 • Stroke:93,20 • Block Ht:220,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE327M83 83,00 Std. 30,50 -15,2 0,10 8,5:1 23 8300XX 326 1,H,R 338284R 344DW21143 / R-FOR-005-I -
KE327M835 83,50 0,50 30,50 -15,2 0,10 8,5:1 23 8350XX 331 1,H,R 330045R 344DW21143 / R-FOR-005-I -
KE227M83 83,00 Std. 30,50 -13 0,10 9,0:1 23 8300XX 335 1,H,R 338284R 344DW21143 / R-FOR-005-I -
KE227M835 83,50 0,50 30,50 -13 0,10 9,0:1 23 8350XX 340 1,H,R 330045R 344DW21143 / R-FOR-005-I -
KE227M84 84,00 1,00 30,50 -13 0,10 9,0:1 23 8400XX 346 1,H,R 330045R 344DW21143 / R-FOR-005-I -
KE227M845 84,50 1,50 30,50 -13 0,10 9,0:1 23 8450XX 353 1,H,M,R - 344DW21143 / R-FOR-005-I -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
333711C 83,00 Std. 30,50 -15,2 0,10 8,5:1 23 JG1001-3268 332 H,M,R 338284R 344DW21143 / R-FOR-005-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 251-4703 251-6203 251-5801
KING - - -
Focus ST
OEM Engine details 2,5 Ltr 20V Engine code:HUWA/HYDA • Displacement:2522 cc • Valves:20 • Comp. Ratio:9,0:1 • Head cc’s:51,00 • Gasket thickness:1,35 • Rod Length:145,00
Bore:83,00 • Stroke:93,20 • Block Ht:220,00
C/R with 1,60 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312414 83,00 Std. 28,40 -7,2 0 8,5:1 21 JG1005-3268 282 M,PS,S,T 330045R - -
312415 83,50 0,50 28,40 -7,2 0 8,5:1 21 JG1005-3287 285 M,PS,S,T 330045R - -
312416 84,00 1,00 28,40 -7,2 0 8,5:1 21 JG1005-3307 289 M,PS,S,T 330045R - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING CR 509XP - MB 612XP

78 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 79
