Part VI: Advanced Modeling
TABLE 27.2
(continued)
Toolbar Button
Name
Reset Curve
Returns the original curve
Pan
Pans the curve as the mouse is dragged
Zoom Extents Description
Zooms to display the entire curve
Zoom Horizontal Extents Zooms to display the entire horizontal curve range
Zoom Vertical Extents Zooms to display the entire vertical curve range
Zoom Horizontally Zooms on the horizontal curve range
Zoom Vertically Zooms on the vertical curve range
Zoom Zooms in and out as the mouse is dragged

Zoom Region Zooms to the region specified by the mouse

Note
Several buttons are disabled on the Twist and Bevel Deformation windows because these dialog boxes have only
one deformation curve. n
At the bottom of the Deformation dialog boxes are two value fields. The value fields display the X and Y
coordinate values for the currently selected point. The navigation buttons enable you to pan and zoom
within the dialog box.
Figures 27.19 and 27.20 show the various deformation options applied to a lofted column.

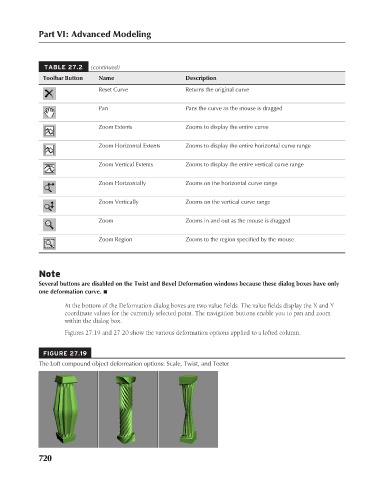

FIGURE 27.19
The Loft compound object deformation options: Scale, Twist, and Teeter
