Part VIII: Advanced Animation Techniques

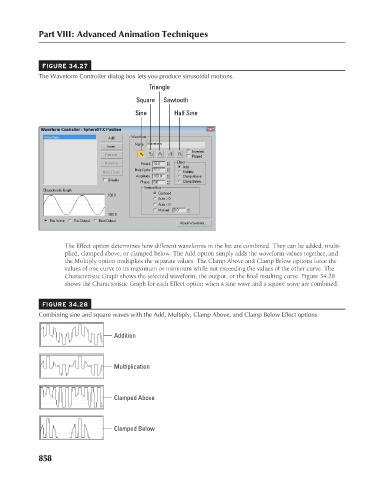

FIGURE 34.27
The Waveform Controller dialog box lets you produce sinusoidal motions.
Triangle
Square
Sawtooth
Sine
Half Sine

The Effect option determines how different waveforms in the list are combined. They can be added, multi-
plied, clamped above, or clamped below. The Add option simply adds the waveform values together, and
the Multiply option multiplies the separate values. The Clamp Above and Clamp Below options force the
values of one curve to its maximum or minimum while not exceeding the values of the other curve. The
Characteristic Graph shows the selected waveform, the output, or the final resulting curve. Figure 34.28
shows the Characteristic Graph for each Effect option when a sine wave and a square wave are combined.

FIGURE 34.28
Combining sine and square waves with the Add, Multiply, Clamp Above, and Clamp Below Effect options

Addition

Multiplication

Clamped Above

Clamped Below
