P. 947
Chapter 36: Working with Function Curves in the Track View

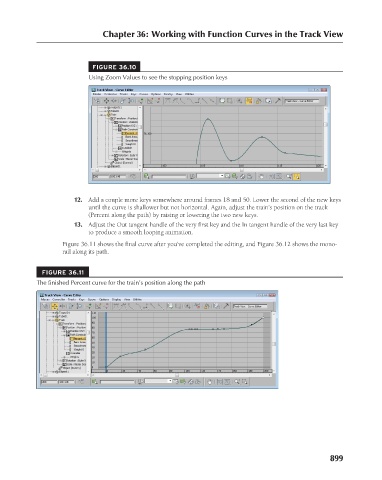

FIGURE 36.10
Using Zoom Values to see the stopping position keys
12. Add a couple more keys somewhere around frames 18 and 50. Lower the second of the new keys
until the curve is shallower but not horizontal. Again, adjust the train’s position on the track
(Percent along the path) by raising or lowering the two new keys.
13. Adjust the Out tangent handle of the very first key and the In tangent handle of the very last key
to produce a smooth looping animation.
Figure 36.11 shows the final curve after you’ve completed the editing, and Figure 36.12 shows the mono-
rail along its path.
FIGURE 36.11
The finished Percent curve for the train’s position along the path
899
