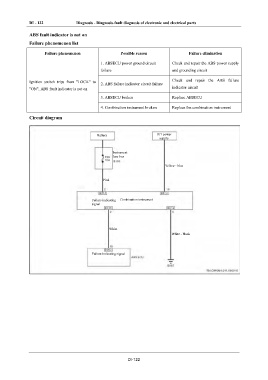

DI - 122 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts
ABS fault indicator is not on
Failure phenomenon list
Failure phenomenon Possible reason Failure elimination
1. ABSECU power ground circuit Check and repair the ABS power supply
failure and grounding circuit
Check and repair the ABS failure
Ignition switch trips from "LOCK" to
2. ABS failure indicator circuit failure
"ON", ABS fault indicator is not on indicator circuit
3. ABSECU broken Replace ABSECU
4. Combination instrument broken Replace the combination instrument
Circuit diagram
Battery IG1 power
supply
Instrument
fuse box
Yellow - blue
Pink
Failure indicating Combination instrument
signal
White
White - black
Failure indicating signal
DI-122
