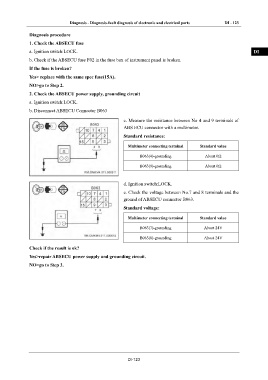

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 123
Diagnosis procedure IN
1. Check the ABSECU fuse
a. Ignition switch:LOCK. DI
b. Check if the ABSECU fuse F02 in the fuse box of instrument panel is broken.
If the fuse is broken? EG
Yes> replace with the same spec fuse(15A).
NO>go to Step 2. TR
2. Check the ABSECU power supply, grounding circuit
a. Ignition switch:LOCK. AX
b. Disconnect ABSECU Connector B063
FR
c. Measure the resistance between No 4 and 9 terminals of
ABS ECU connector with a multimeter.
Standard resistance: ST
Multimeter connecting terminal Standard value
BR
B063(4)-grounding About 0Ω
B063(9)-grounding About 0Ω BW
d. Ignition switch:LOCK. EL
e. Check the voltage between No.7 and 8 terminals and the
ground of ABSECU connector B063.
Standard voltage:
Multimeter connecting terminal Standard value
B063(7)-grounding About 24V
B063(8)-grounding About 24V
Check if the result is ok?
Yes>repair ABSECU power supply and grounding circuit.
NO>go to Step 3.
DI-123
