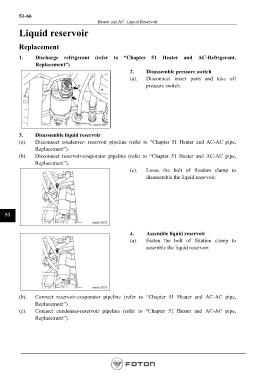

Page 1158 - Workshop Manual - Aumark (BJ1051)

51-66
Heater and AC- Liquid Reservoir

Liquid reservoir

Replacement

1. Discharge refrigerant (refer to “Chapter 51 Heater and AC-Refrigerant,
Replacement”)
2. Disassemble pressure switch
(a). Disconnect insert parts and take off
pressure switch.

3. Disassemble liquid reservoir
(a). Disconnect condenser- reservoir pipeline (refer to “Chapter 51 Heater and AC-AC pipe,
Replacement”).
(b). Disconnect reservoir-evaporator pipeline (refer to “Chapter 51 Heater and AC-AC pipe,
Replacement”).
(c). Loose the bolt of fixation clamp to
disassemble the liquid reservoir.

51

4. Assemble liquid reservoir
(a). Fasten the bolt of fixation clamp to
assemble the liquid reservoir.

(b). Connect reservoir-evaporator pipeline (refer to “Chapter 51 Heater and AC-AC pipe,
Replacement”).
(c). Connect condenser-reservoir pipeline (refer to “Chapter 51 Heater and AC-AC pipe,
Replacement”).
