51-63

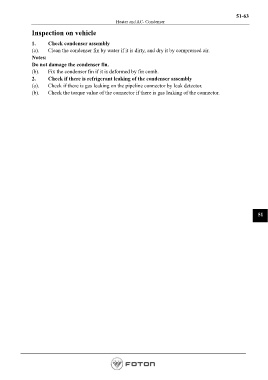

Heater and AC- Condenser
Inspection on vehicle
1. Check condenser assembly
(a). Clean the condenser fin by water if it is dirty, and dry it by compressed air.
Notes:
Do not damage the condenser fin.
(b). Fix the condenser fin if it is deformed by fin comb.
2. Check if there is refrigerant leaking of the condenser assembly
(a). Check if there is gas leaking on the pipeline connector by leak detector.
(b). Check the torque value of the connector if there is gas leaking of the connector.
