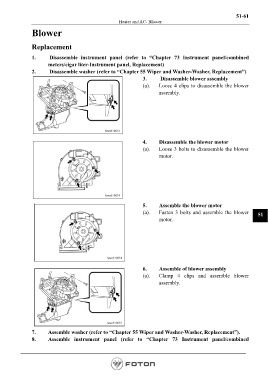

Page 1153 - Workshop Manual - Aumark (BJ1051)

51-61
Heater and AC- Blower

Blower

Replacement

1. Disassemble instrument panel (refer to “Chapter 73 Instrument panel/combined
meters/cigar liter-Instrument panel, Replacement)
2. Disassemble washer (refer to “Chapter 55 Wiper and Washer-Washer, Replacement”)
3. Disassemble blower assembly
(a). Loose 4 clips to disassemble the blower
assembly.

4. Disassemble the blower motor
(a). Loose 3 bolts to disassemble the blower
motor.

5. Assemble the blower motor
(a). Fasten 3 bolts and assemble the blower 51
motor.

6. Assemble of blower assembly
(a). Clamp 4 clips and assemble blower
assembly.

7. Assemble washer (refer to “Chapter 55 Wiper and Washer-Washer, Replacement”).
8. Assemble instrument panel (refer to “Chapter 73 Instrument panel/combined
meters/cigar liter-Instrument panel, Replacement).
