61-3

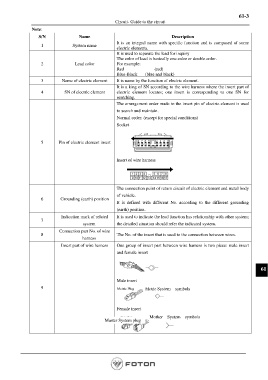

Circuit- Guide to the circuit
Note:
S/N Name Description
It is an integral name with specific function and is composed of some
1 System name
electric elements.
It is used to separate the lead for inquiry
The color of lead is basically one color or double color.
2 Lead color For example:
Red (red)
Blue-Black (blue and black)
3 Name of electric element It is name by the function of electric element.
It is a king of SN according to the wire harness where the insert part of
4 SN of electric element electric element locates; one insert is corresponding to one SN for
searching.
The arrangement order made to the insert pin of electric element is used
to search and maintain.
Normal order: (except for special conditions)
Socket

5 Pin of electric element insert

Insert of wire harness

The connection point of return circuit of electric element and metal body
of vehicle.
6 Grounding (earth) position
It is defined with different No. according to the different grounding
(earth) position.
Indication mark of related It is used to indicate the lead function has relationship with other system;
7
system the detailed situation should refer the indicated system.
Connection part No. of wire
8 The No. of the insert that is used to the connection between wires.
harness
Insert part of wire harness One group of insert part between wire harness is two piece: male insert
and female insert

61

Male insert
9 Metric Plug Metric System symbols

Female insert
Mother System symbols
Master System plug
