P. 1284
61-12
Circuit-Guide to circuit

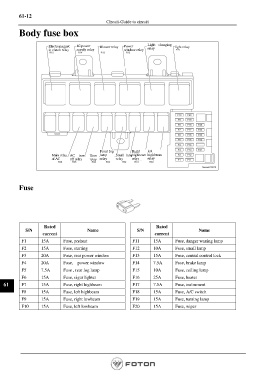

Body fuse box
Electromagnet IG power Blower relay Power Light changing light relay
ic clutch relay supply relay window relay relay
Front fog Right left
Main relay AC turn Horn lamp Small lamp highbeam highbeam
of AC off relay relay relay relay relay relay
Fuse
Rated Rated
S/N Name S/N Name
current current
F1 15A Fuse, preheat F11 15A Fuse, danger waning lamp
F2 15A Fuse, starting F12 10A Fuse, small lamp
F3 20A Fuse, rear power window F13 15A Fuse, central control lock
F4 20A Fuse, power window F14 7.5A Fuse, brake lamp
F5 7.5A Fuse , rear fog lamp F15 10A Fuse, ceiling lamp
F6 15A Fuse, cigar lighter F16 25A Fuse, heater
61 F7 15A Fuse, right highbeam F17 7.5A Fuse, instrument
F8 15A Fuse, left highbeam F18 15A Fuse, A/C switch
F9 15A Fuse, right lowbeam F19 15A Fuse, turning lamp
F10 15A Fuse, left lowbeam F20 15A Fuse, wiper
