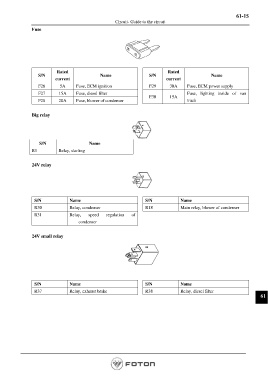

61-15
Circuit- Guide to the circuit
Fuse

Rated Rated
S/N Name S/N Name
current current
F26 5A Fuse, ECM ignition F29 30A Fuse, ECM power supply
F27 15A Fuse, diesel filter Fuse, lighting inside of van
F30 15A
F28 20A Fuse, blower of condenser truck

Big relay

S/N Name
R1 Relay, starting

24V relay

S/N Name S/N Name
R30 Relay, condenser R18 Main relay, blower of condenser

R31 Relay, speed regulation of
condenser

24V small relay

S/N Name S/N Name
R37 Relay, exhaust brake R38 Relay, diesel filter

61
