P. 1288
61-16
Circuit-Guide to circuit

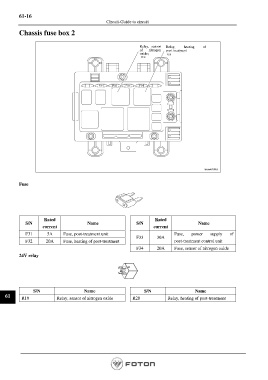

Chassis fuse box 2
Relay, sensor Relay, heating of
of nitrogen post-treatment
oxide;
Fuse
Rated Rated
S/N Name S/N Name
current current
F31 5A Fuse, post-treatment unit Fuse, power supply of
F33 30A
F32 20A Fuse, heating of post-treatment post-treatment control unit
F34 20A Fuse, sensor of nitrogen oxide
24V relay
S/N Name S/N Name
61 R19 Relay, sensor of nitrogen oxide R20 Relay, heating of post-treatment
