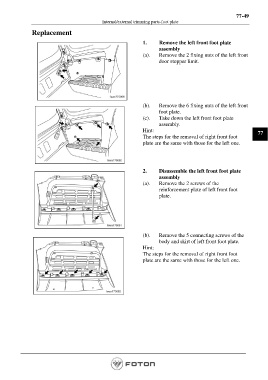

Page 1591 - Workshop Manual - Aumark (BJ1051)

77-49
Internal/external trimming parts-foot plate

Replacement

1. Remove the left front foot plate
assembly
(a). Remove the 2 fixing nuts of the left front
door stopper limit.

(b). Remove the 6 fixing nuts of the left front
foot plate.
(c). Take down the left front foot plate
assembly.
Hint: 77
The steps for the removal of right front foot
plate are the same with those for the left one.

2. Disassemble the left front foot plate
assembly
(a). Remove the 2 screws of the
reinforcement plate of left front foot
plate.

(b). Remove the 5 connecting screws of the
body and skirt of left front foot plate.
Hint:
The steps for the removal of right front foot
plate are the same with those for the left one.
