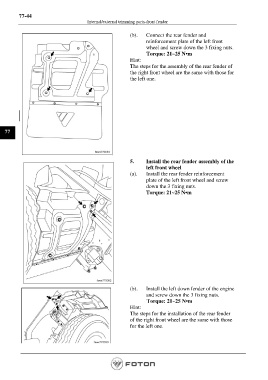

Page 1586 - Workshop Manual - Aumark (BJ1051)

77-44
Internal/external trimming parts-front fender

(b). Connect the rear fender and
reinforcement plate of the left front
wheel and screw down the 3 fixing nuts.
Torque: 21~25 N•m
Hint:
The steps for the assembly of the rear fender of
the right front wheel are the same with those for
the left one.

77

5. Install the rear fender assembly of the
left front wheel
(a). Install the rear fender reinforcement
plate of the left front wheel and screw
down the 3 fixing nuts.
Torque: 21~25 N•m

(b). Install the left down fender of the engine
and screw down the 3 fixing nuts.
Torque: 21~25 N•m
Hint:
The steps for the installation of the rear fender
of the right front wheel are the same with those
for the left one.
