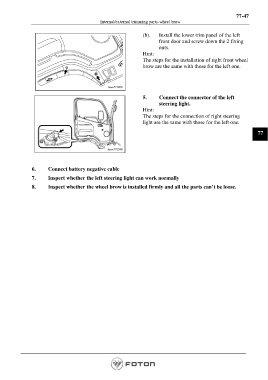

Page 1589 - Workshop Manual - Aumark (BJ1051)

77-47
Internal/external trimming parts-wheel brow

(b). Install the lower trim panel of the left
front door and screw down the 2 fixing
nuts.
Hint:
The steps for the installation of right front wheel
brow are the same with those for the left one.

5. Connect the connector of the left
steering light.
Hint:
The steps for the connection of right steering
light are the same with those for the left one.

77

6. Connect battery negative cable
7. Inspect whether the left steering light can work normally

8. Inspect whether the wheel brow is installed firmly and all the parts can’t be loose.
