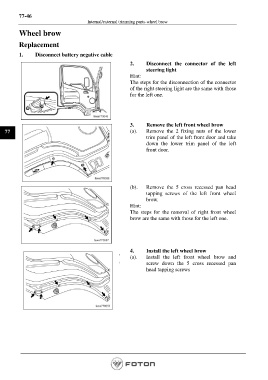

77-46
Internal/external trimming parts-wheel brow

Wheel brow

Replacement

1. Disconnect battery negative cable

2. Disconnect the connector of the left
steering light
Hint:
The steps for the disconnection of the connector
of the right steering light are the same with those
for the left one.

3. Remove the left front wheel brow
77 (a). Remove the 2 fixing nuts of the lower
trim panel of the left front door and take
down the lower trim panel of the left
front door.

(b). Remove the 5 cross recessed pan head
tapping screws of the left front wheel
brow.
Hint:
The steps for the removal of right front wheel
brow are the same with those for the left one.

4. Install the left wheel brow
(a). Install the left front wheel brow and
screw down the 5 cross recessed pan
head tapping screws
