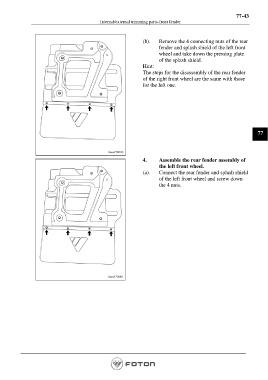

77-43
Internal/external trimming parts-front fender

(b). Remove the 4 connecting nuts of the rear
fender and splash shield of the left front
wheel and take down the pressing plate
of the splash shield.
Hint:
The steps for the disassembly of the rear fender
of the right front wheel are the same with those
for the left one.

77

4. Assemble the rear fender assembly of
the left front wheel.
(a). Connect the rear fender and splash shield
of the left front wheel and screw down
the 4 nuts.
