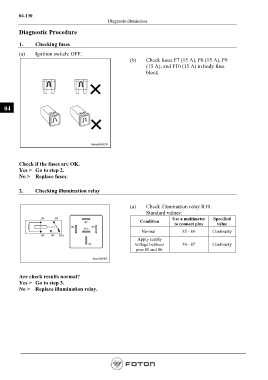

04-130
Diagnosis-illumination

Diagnostic Procedure

1. Checking fuses

(a) Ignition switch: OFF.
(b) Check fuses F7 (15 A), F8 (15 A), F9
(15 A), and F10 (15 A) in body fuse
block.

04

Check if the fuses are OK.
Yes > Go to step 2.
No > Replace fuses.

2. Checking illumination relay

(a) Check illumination relay R10.
Standard values:
Use a multimeter Specified
Condition
to connect pins value
Normal 85 - 86 Continuity

Apply supply
voltage between 30 - 87 Continuity
pins 85 and 86.

Are check results normal?
Yes > Go to step 3.
No > Replace illumination relay.
