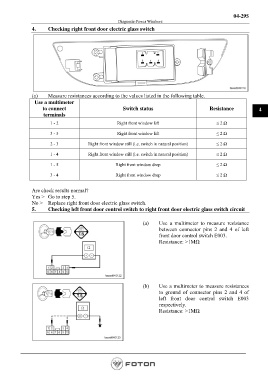

Diagnosis-Power Windows
4. Checking right front door electric glass switch

(a) Measure resistances according to the values listed in the following table.
Use a multimeter
to connect Switch status Resistance 4
terminals
1 - 2 Right front window lift ≤ 2 Ω

3 - 5 Right front window lift ≤ 2 Ω

2 - 3 Right front window still (i.e. switch in natural position) ≤ 2 Ω

1 - 4 Right front window still (i.e. switch in natural position) ≤ 2 Ω

1 - 5 Right front window drop ≤ 2 Ω

3 - 4 Right front window drop ≤ 2 Ω

Are check results normal?
Yes > Go to step 5.
No > Replace right front door electric glass switch.
5. Checking left front door control switch to right front door electric glass switch circuit

(a) Use a multimeter to measure resistance
between connector pins 2 and 4 of left
front door control switch E003.
Resistance: >1MΩ

(b) Use a multimeter to measure resistances
to ground of connector pins 2 and 4 of
left front door control switch E003
respectively.
Resistance: >1MΩ
