04-408
Diagnosis- Central Lock

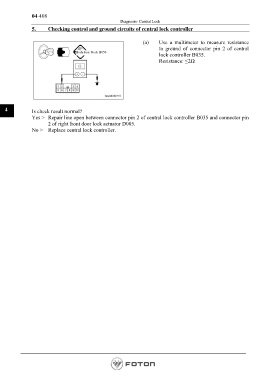

5. Checking control and ground circuits of central lock controller
(a) Use a multimeter to measure resistance
to ground of connector pin 2 of central
Body fuse block B050
lock controller B035.
Resistance: ≤2Ω
4 Is check result normal?
Yes > Repair line open between connector pin 2 of central lock controller B035 and connector pin
2 of right front door lock actuator D005.
No > Replace central lock controller.
