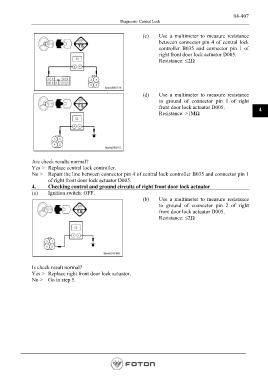

Page 551 - Workshop Manual - Aumark (BJ1051)

04-407
Diagnosis- Central Lock

(c) Use a multimeter to measure resistance
between connector pin 4 of central lock
controller B035 and connector pin 1 of
right front door lock actuator D005.
Resistance: ≤2Ω

(d) Use a multimeter to measure resistance
to ground of connector pin 1 of right
front door lock actuator D005. 4
Resistance: >1MΩ

Are check results normal?
Yes > Replace central lock controller.
No > Repair the line between connector pin 4 of central lock controller B035 and connector pin 1
of right front door lock actuator D005.
4. Checking control and ground circuits of right front door lock actuator
(a) Ignition switch: OFF.
(b) Use a multimeter to measure resistance
to ground of connector pin 2 of right
front door lock actuator D005.
Resistance: ≤2Ω

Is check result normal?
Yes > Replace right front door lock actuator.
No > Go to step 5.
