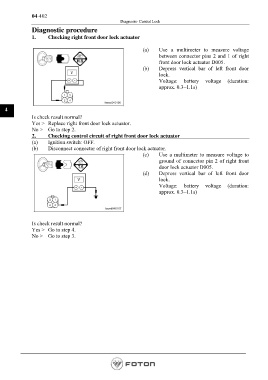

Page 546 - Workshop Manual - Aumark (BJ1051)

04-402
Diagnosis- Central Lock
Diagnostic procedure

1. Checking right front door lock actuator

(a) Use a multimeter to measure voltage
between connector pins 2 and 1 of right
front door lock actuator D005.
(b) Depress vertical bar of left front door
lock.
Voltage: battery voltage (duration:
approx. 0.3~1.1s)

4
Is check result normal?
Yes > Replace right front door lock actuator.
No > Go to step 2.
2. Checking control circuit of right front door lock actuator
(a) Ignition switch: OFF.
(b) Disconnect connector of right front door lock actuator.
(c) Use a multimeter to measure voltage to
ground of connector pin 2 of right front
door lock actuator D005.
(d) Depress vertical bar of left front door
lock.
Voltage: battery voltage (duration:
approx. 0.3~1.1s)

Is check result normal?
Yes > Go to step 4.
No > Go to step 3.
