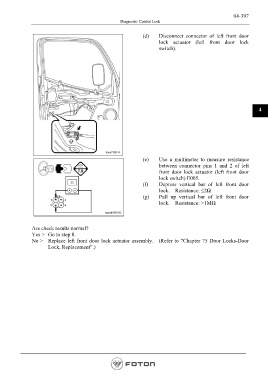

P. 541
04-397
Diagnosis- Central Lock
(d) Disconnect connector of left front door
lock actuator (left front door lock
switch).
4
(e) Use a multimeter to measure resistance
between connector pins 1 and 2 of left
front door lock actuator (left front door
lock switch) E005.
(f) Depress vertical bar of left front door
lock. Resistance: ≤2Ω
(g) Pull up vertical bar of left front door
lock. Resistance: >1MΩ
Are check results normal?
Yes > Go to step 8.
No > Replace left front door lock actuator assembly. (Refer to “Chapter 75 Door Locks-Door
Lock, Replacement”.)
