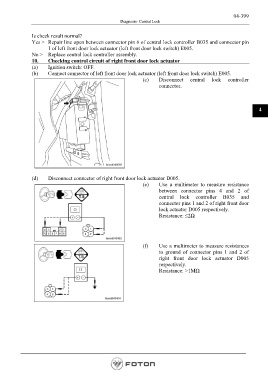

Diagnosis- Central Lock

Is check result normal?
Yes > Repair line open between connector pin 6 of central lock controller B035 and connector pin
1 of left front door lock actuator (left front door lock switch) E005.
No > Replace central lock controller assembly.
10. Checking control circuit of right front door lock actuator
(a) Ignition switch: OFF.
(b) Connect connector of left front door lock actuator (left front door lock switch) E005.
(c) Disconnect central lock controller
connector.

4

(d) Disconnect connector of right front door lock actuator D005.
(e) Use a multimeter to measure resistance
between connector pins 4 and 2 of
central lock controller B035 and
connector pins 1 and 2 of right front door
lock actuator D005 respectively.
Resistance: ≤2Ω

(f) Use a multimeter to measure resistances
to ground of connector pins 1 and 2 of
right front door lock actuator D005
respectively.
Resistance: >1MΩ
