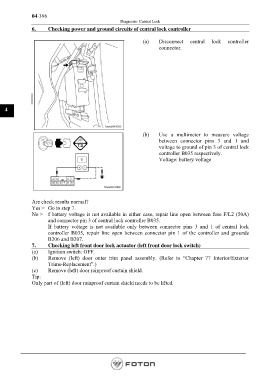

04-396
Diagnosis- Central Lock
6. Checking power and ground circuits of central lock controller

(a) Disconnect central lock controller
connector.

4

(b) Use a multimeter to measure voltage
between connector pins 3 and 1 and
voltage to ground of pin 3 of central lock
controller B035 respectively.
Voltage: battery voltage

Are check results normal?
Yes > Go to step 7.
No > f battery voltage is not available in either case, repair line open between fuse F/L2 (50A)
and connector pin 3 of central lock controller B035.
If battery voltage is not available only between connector pins 3 and 1 of central lock
controller B035, repair line open between connector pin 1 of the controller and grounds
B206 and B207.
7. Checking left front door lock actuator (left front door lock switch)
(a) Ignition switch: OFF.
(b) Remove (left) door outer trim panel assembly. (Refer to “Chapter 77 Interior/Exterior
Trims-Replacement”.)
(c) Remove (left) door rainproof curtain shield.
Tip:
Only part of (left) door rainproof curtain shield needs to be lifted.
