04-391
Diagnosis- Central Lock

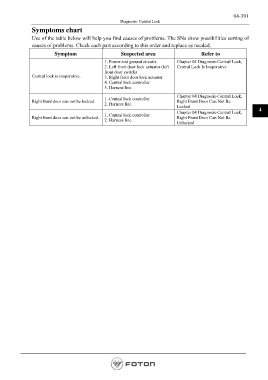

Symptoms chart

Use of the table below will help you find causes of problems. The SNs show possibilities sorting of
causes of problems. Check each part according to this order and replace as needed.
Symptom Suspected area Refer to
1. Power and ground circuits Chapter 04 Diagnosis-Central Lock,
2. Left front door lock actuator (left Central Lock Is Inoperative
front door switch)
Central lock is inoperative. 3. Right front door lock actuator
4. Central lock controller
5. Harness line
Chapter 04 Diagnosis-Central Lock,
1. Central lock controller
Right front door can not be locked. Right Front Door Can Not Be
2. Harness line
Locked
Chapter 04 Diagnosis-Central Lock, 4
1. Central lock controller
Right front door can not be unlocked. Right Front Door Can Not Be
2. Harness line
Unlocked
