04-389
Diagnosis- Central Lock

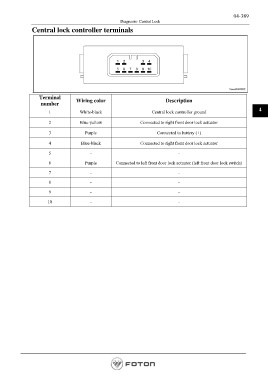

Central lock controller terminals

Terminal Wiring color Description
number
4
1 White-black Central lock controller ground
2 Blue-yellow Connected to right front door lock actuator

3 Purple Connected to battery (+)

4 Blue-black Connected to right front door lock actuator

5 - -
6 Purple Connected to left front door lock actuator (left front door lock switch)

7 - -

8 - -
9 - -

10 - -
