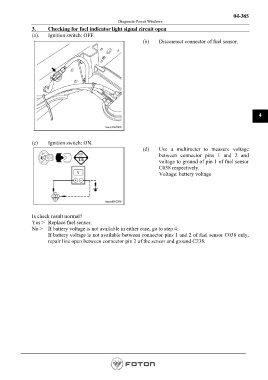

P. 529
04-385
Diagnosis-Power Windows
3. Checking for fuel indicator light signal circuit open
(a). Ignition switch: OFF.
(b) Disconnect connector of fuel sensor.
4
(c) Ignition switch: ON.
(d) Use a multimeter to measure voltage
between connector pins 1 and 2 and
voltage to ground of pin 1 of fuel sensor
C038 respectively.
Voltage: battery voltage
Is check result normal?
Yes > Replace fuel sensor.
No > If battery voltage is not available in either case, go to step 4.
If battery voltage is not available between connector pins 1 and 2 of fuel sensor C038 only,
repair line open between connector pin 2 of the sensor and ground C238.
