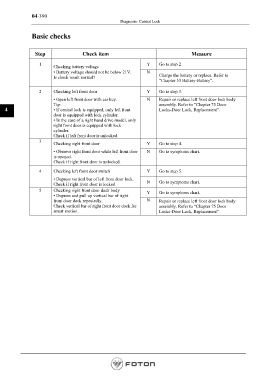

Page 534 - Workshop Manual - Aumark (BJ1051)

04-390
Diagnosis- Central Lock

Basic checks

Step Check item Measure

1 Y Go to step 2.
Checking battery voltage
• Battery voltage should not be below 21V. N
Is check result normal? Charge the battery or replace. Refer to
“Chapter 53 Battery-Battery”.

2 Checking left front door Y Go to step 3.
• Open left front door with car key. N Repair or replace left front door lock body
Tip: assembly. Refer to “Chapter 75 Door
4 • If central lock is equipped, only left front Locks-Door Lock, Replacement”.
door is equipped with lock cylinder.
• In the case of a right hand drive model, only
right front door is equipped with lock
cylinder.
Check if left front door is unlocked.
3
Checking right front door Y Go to step 4.
• Observe right front door while left front door N Go to symptoms chart.
is opened.
Check if right front door is unlocked.

4 Checking left front door switch Y Go to step 5.
• Depress vertical bar of left front door lock.
Check if right front door is locked. N Go to symptoms chart.
5 Checking right front door dock body Y Go to symptoms chart.
• Depress and pull up vertical bar of right
front door dock repeatedly. N Repair or replace left front door lock body
Check vertical bar of right front door dock for assembly. Refer to “Chapter 75 Door
smart motion. Locks-Door Lock, Replacement”.
