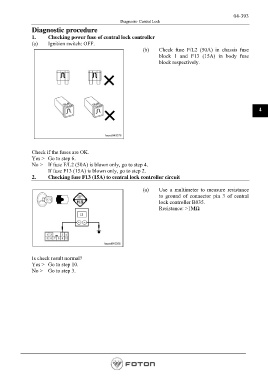

04-393
Diagnosis- Central Lock
Diagnostic procedure

1. Checking power fuse of central lock controller
(a) Ignition switch: OFF.
(b) Check fuse F/L2 (50A) in chassis fuse
block 1 and F13 (15A) in body fuse
block respectively.

4

Check if the fuses are OK.
Yes > Go to step 6.
No > If fuse F/L2 (50A) is blown only, go to step 4.
If fuse F13 (15A) is blown only, go to step 2.
2. Checking fuse F13 (15A) to central lock controller circuit

(a) Use a multimeter to measure resistance
to ground of connector pin 3 of central
lock controller B035.
Resistance: >1MΩ

Is check result normal?
Yes > Go to step 10.
No > Go to step 3.
