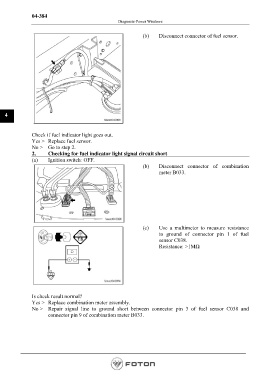

04-384
Diagnosis-Power Windows

(b) Disconnect connector of fuel sensor.

4

Check if fuel indicator light goes out.
Yes > Replace fuel sensor.
No > Go to step 2.
2. Checking for fuel indicator light signal circuit short
(a) Ignition switch: OFF.
(b) Disconnect connector of combination
meter B033.

(c) Use a multimeter to measure resistance
to ground of connector pin 1 of fuel
sensor C038.
Resistance: >1MΩ

Is check result normal?
Yes > Replace combination meter assembly.
No > Repair signal line to ground short between connector pin 3 of fuel sensor C038 and
connector pin 9 of combination meter B033.
