P. 523
04-379
Diagnosis-Power Windows

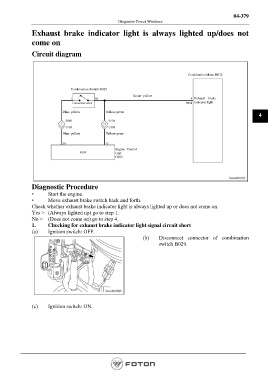

Exhaust brake indicator light is always lighted up/does not
come on
Circuit diagram
Combination Meter B032
Combination Switch B029
Green- yellow
Exhaust brake
Exhaust brake switch indicator light
Blue- yellow Yellow-green
4
Blue- yellow Yellow-green
Engine Control
Unit
C003
Diagnostic Procedure
• Start the engine.
• Move exhaust brake switch back and forth.
Check whether exhaust brake indicator light is always lighted up or does not come on.
Yes > (Always lighted up) go to step 1.
No > (Does not come on) go to step 4.
1. Checking for exhaust brake indicator light signal circuit short
(a) Ignition switch: OFF.
(b) Disconnect connector of combination
switch B029.
(c) Ignition switch: ON.
