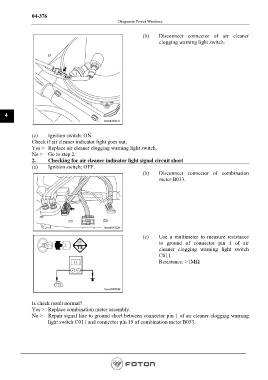

04-376
Diagnosis-Power Windows

(b) Disconnect connector of air cleaner
clogging warning light switch.

4

(c) Ignition switch: ON.
Check if air cleaner indicator light goes out.
Yes > Replace air cleaner clogging warning light switch.
No > Go to step 2.
2. Checking for air cleaner indicator light signal circuit short
(a) Ignition switch: OFF.
(b) Disconnect connector of combination
meter B033.

(c) Use a multimeter to measure resistance
to ground of connector pin 1 of air
cleaner clogging warning light switch
C011.
Resistance: >1MΩ

Is check result normal?
Yes > Replace combination meter assembly.
No > Repair signal line to ground short between connector pin 1 of air cleaner clogging warning
light switch C011 and connector pin 19 of combination meter B033.
