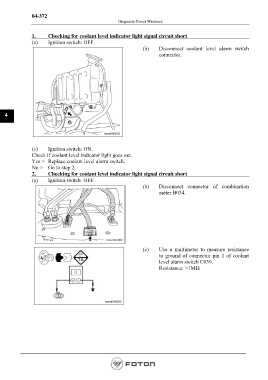

04-372
Diagnosis-Power Windows
1. Checking for coolant level indicator light signal circuit short
(a) Ignition switch: OFF.
(b) Disconnect coolant level alarm switch
connector.
4
(c) Ignition switch: ON.
Check if coolant level indicator light goes out.
Yes > Replace coolant level alarm switch.
No > Go to step 2.
2. Checking for coolant level indicator light signal circuit short
(a) Ignition switch: OFF.
(b) Disconnect connector of combination
meter B034.
(c) Use a multimeter to measure resistance
to ground of connector pin 1 of coolant
level alarm switch C039.
Resistance: >1MΩ
