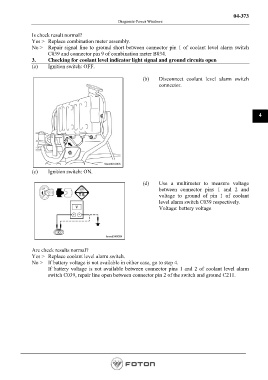

04-373
Diagnosis-Power Windows

Is check result normal?
Yes > Replace combination meter assembly.
No > Repair signal line to ground short between connector pin 1 of coolant level alarm switch
C039 and connector pin 9 of combination meter B034.
3. Checking for coolant level indicator light signal and ground circuits open
(a) Ignition switch: OFF.

(b) Disconnect coolant level alarm switch
connector.

4

(c) Ignition switch: ON.

(d) Use a multimeter to measure voltage
between connector pins 1 and 2 and
voltage to ground of pin 1 of coolant
level alarm switch C039 respectively.
Voltage: battery voltage

Are check results normal?
Yes > Replace coolant level alarm switch.
No > If battery voltage is not available in either case, go to step 4.
If battery voltage is not available between connector pins 1 and 2 of coolant level alarm
switch C039, repair line open between connector pin 2 of the switch and ground C211.
